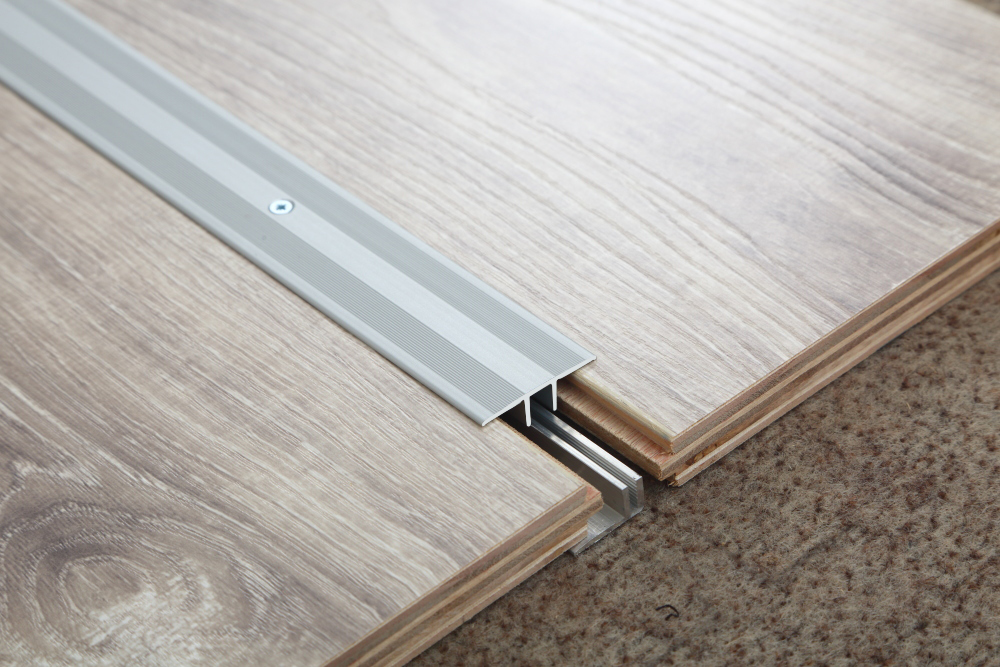

Connection profile is a two-piece aluminium floor trims for join wood, laminate, LVT and SPC floor of the same height. The top profile width of DPS 520, DPS 530 and DPS 540 is 33.5mm. The floor tile trim designs used to join floorcoverings of the same height. It offers a choice of gauges to accommodate floorcovering thicknesses of 5mm to 21mm. It allows safe transition for flooring covers such as solid wood floor, laminate floor, LVT, SPC, carpet and ceramic tiles. Profiles are available in a matt gold, sand, silver,bronze,champagne anodised finish and are suitable for interior use.
| Brand | King |
| Name | Aluminium DPS Connection Profile |
| Material | Aluminium Alloy |
| Surface | Polishing, Brushing, Matt anodized, Matting, Static power coating, Thermal heat printing etc |
| Colour | Gold, Sand, Silver, Bronze, Champagne |
| Certification | ISO9001, SGS, CE |
| Features |
1.Conntersunk drilled 2.Inclusive base profile 3.Quick & easy to fit 4.Solid aluminium section 5.Various lengths & widths available |
 |

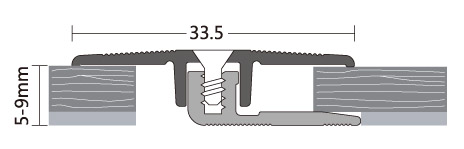

Aluminium DPS System Connection Profile DPS 520 |
| Top profile width 33.5mm
Suitable for 5-9mm wood, laminate, LVT, SPC floor |
|
 |

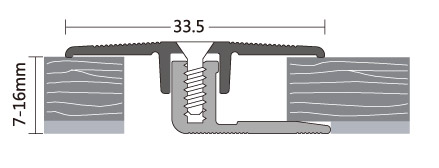

Aluminium DPS System Connection Profile DPS 530 |
| Top profile width 33.5mm
Suitable for 7-16mm wood, laminate, LVT, SPC floor |
|
 |

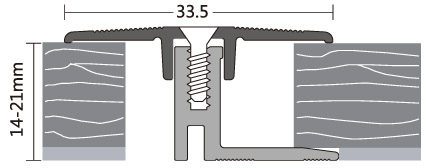

Aluminium DPS System Connection Profile DPS 540 |
| Top profile width 33.5mm
Suitable for 14-21mm wood, laminate, LVT, SPC floor |
